[shortdesc]

Managed, Rack-mountable, 48 x 1G PoE+ ports, Modular Uplinks (4 x 1G SFP, 2 x 10G SFP+), PoE+ (800W), Layer 3, IP Services

[/shortdesc]

[properties]

Properties	WS-C3850-48F-E
Description	Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply 1 RU, IP Services feature set
Product Family	Catalyst 3850
Product Type	Ethernet Switch
Total 10/100/1000 or SFP or SFP+ ports	48 PoE+
Default AC Power Supply	1100 WAC
Available PoE Power	800W
POE budget with 1100W secondary PS	1900W
Compatible Network Modules	C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
Dimensions in.	1.75 x 17.5 x 19.2

[/properties][specifications]

Specifications	WS-C3850-48F-E
DRAM	4 GB
Flash Memory	2 GB
Switching capacity	176 Gbps
Forwarding rate	130.95 Mpps
MAC addresses	32.000
MTBF Hours	241.050
Stacking Support	StackWise-480
Stacking Bandwidth support	480 Gbps
Optional Stacking hardware	StackWise Cable
Operating Temperature Up to 5,000 ft (1500 m)	-5°C to +45°C
Operating Temperature Up to 10,000 ft (3000 m)	-5°C to +40°C
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
EMI and EMC compliance	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000- 6-1
Environmental	Reduction of Hazardous Substances (ROHS) 5

[/specifications][accesories]

STACK-T1-50CM=	Cisco StackWise-480 50cm stacking cable spare
STACK-T1-1M=	Cisco StackWise-480 1m stacking cable spare
STACK-T1-3M=	Cisco StackWise-480 3m stacking cable spare
CAB-SPWR-30CM=	Cisco Catalyst 3850 StackPower cable 30cm spare
CAB-SPWR-150CM=	Cisco Catalyst 3850 StackPower cable 150cm spare
C3850-ACC-KIT=	Accessory kit for Cisco Catalyst 3850 Series
C3850-RAC-KIT=	Rack mount kit for Cisco Catalyst 3850 Series
C3850-4PT-KIT=	Extension rails and brackets for four-point mounting for Cisco Catalyst 3850 Series

[/accesories]

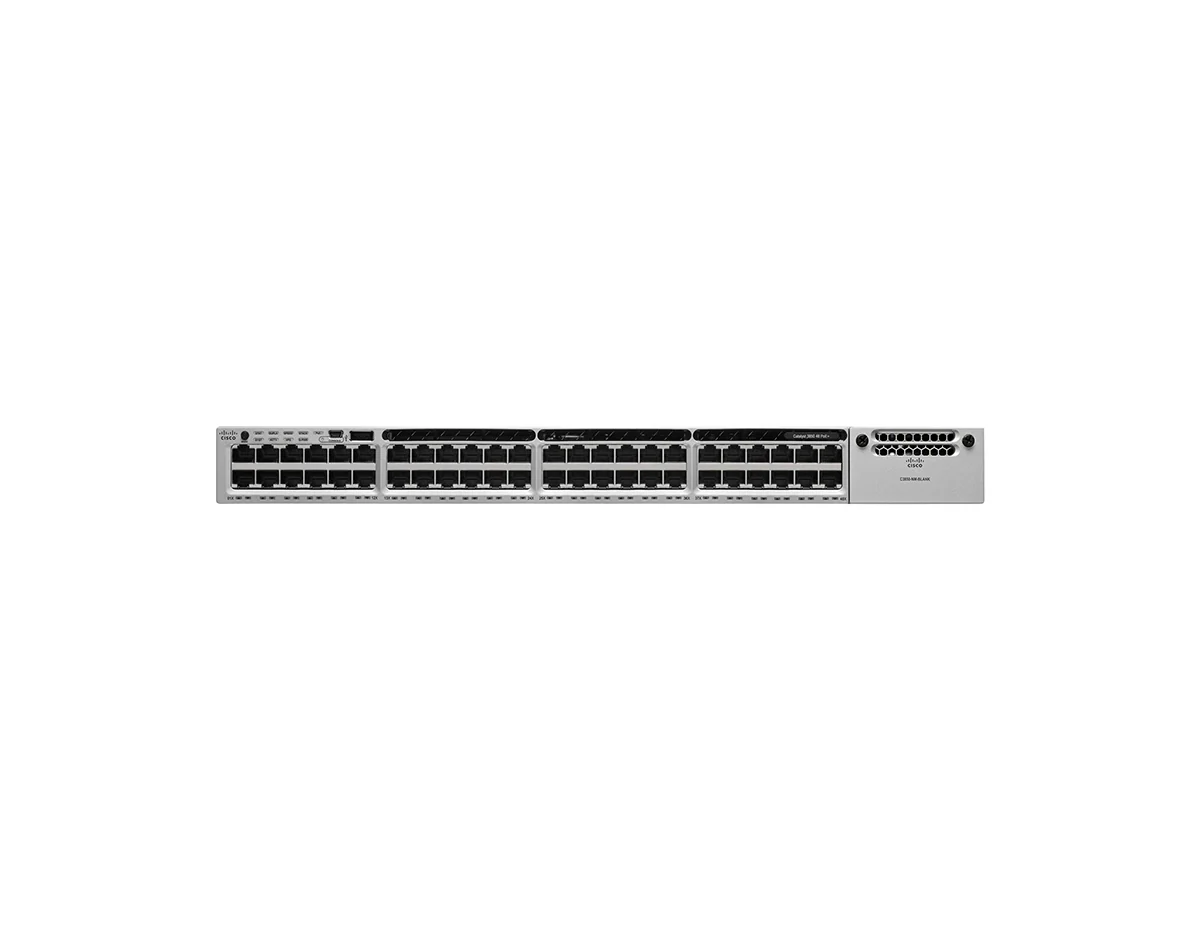

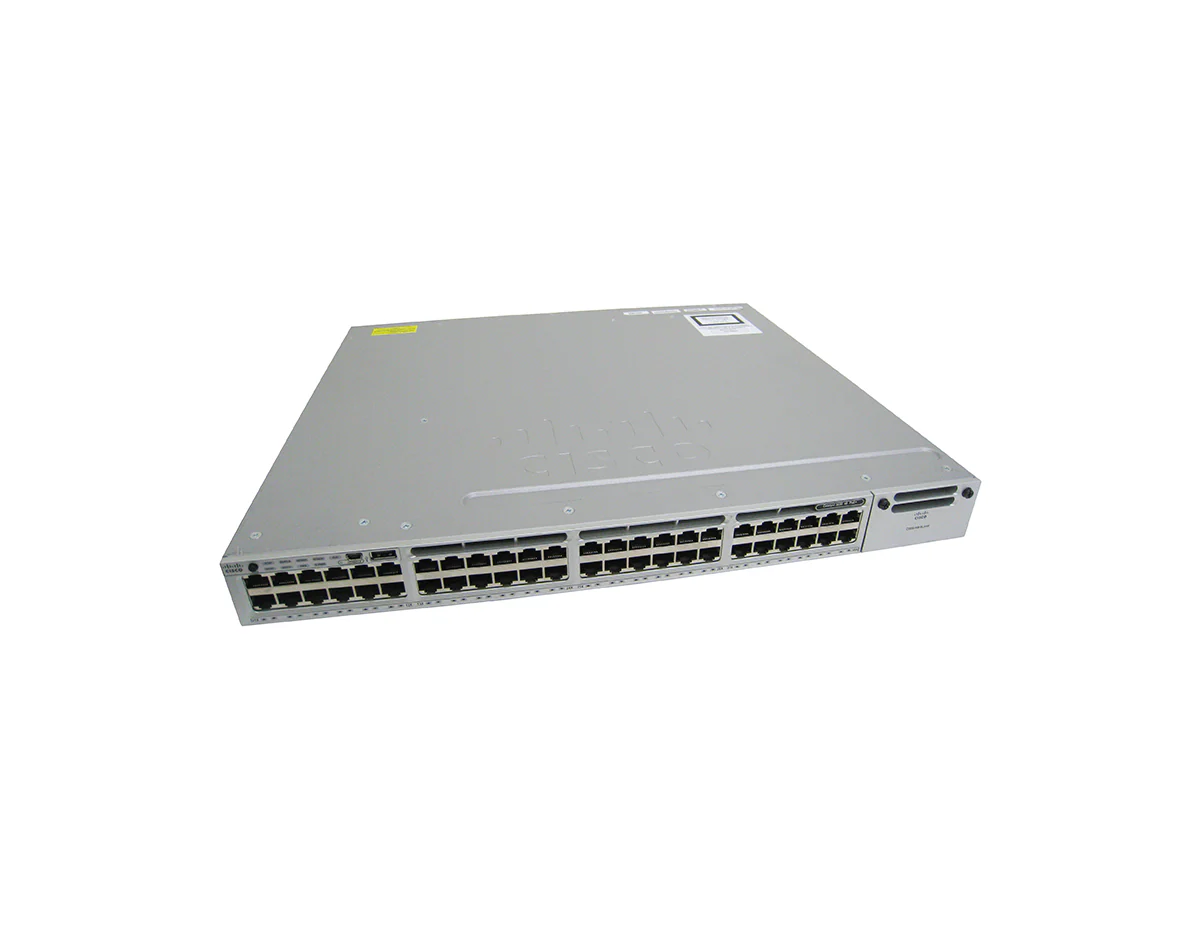

Cisco Catalyst WS-C3850-48F-E Switch

The Cisco Catalyst WS-C3850-48F-E Switch is a high-performance, enterprise-class switch designed for networks that demand scalability, high-speed connectivity, and robust power capabilities. This switch comes with 48 PoE+ Gigabit Ethernet ports, providing up to 800W total power for powering devices like IP phones, access points, and cameras. With StackWise-480 technology and advanced Layer 3 routing features, this switch ensures seamless network expansion and improved network management for large-scale deployments.

Key Features:

48 x Gigabit Ethernet Ports with PoE+: Delivers up to 30W per port with an 800W power budget, perfect for high-power PoE devices.
Modular Uplink Flexibility: Offers 1G, 10G, and 40G uplinks to support growing network needs.
Advanced Layer 3 Functionality: Includes OSPF, BGP, and EIGRP for intelligent routing and traffic optimization.
StackWise-480 Technology: Supports 480 Gbps of stacking bandwidth, enabling simplified network scaling and redundancy.
Energy Efficiency: Adheres to IEEE 802.3az standards, ensuring reduced energy consumption without compromising network performance.
Security: Features MACsec encryption and ACLs to enhance network security.

Technical Overview:

Recommended for: Enterprise networks, government institutions, and data centers.
Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports with PoE+ (up to 30W per port).
Uplink Modules: Supports 1G, 10G, and 40G uplinks.
Switching Capacity: 176 Gbps.
Forwarding Rate: 130.95 Mpps.
Layer 3 Features: OSPF, BGP, EIGRP, and ACLs for traffic management and network optimization.
Management: Web-based GUI, CLI, SNMP, and Cisco DNA for comprehensive automation and monitoring.
Licensing: Network Essentials.
Security: Features MACsec encryption and advanced access control.
Energy Efficiency: IEEE 802.3az compliance for power-saving operation.

You can check the related tab for the WS-C3850-48F-E datasheet.

Cisco Catalyst 3850 Series Switches
