[shortdesc]Next-Generation Firewall security appliance with desktop form factor, 8 Gigabit Ethernet ports, 2x 10GbE SFP+ uplinks, 5 Gbps firewall throughput, and SonicOS 7 architecture.[/shortdesc]

[properties]

Brand	SonicWall
Model	TZ670
SKU	02-SSC-2837
Product Type	Security Appliance
Series	TZ670 Series
Form Factor	Desktop
Port Count	8 Port
Interface	8x 1GbE, 2x 10GbE SFP+, 2x USB 3.0, 1x Console, 1x Dedicated Management Port
Connectivity Technology	Wired
Storage	64 GB M.2 NVMe SSD
Dimensions	3.5 x 15 x 22.5 cm / 1.38 x 5.91 x 8.85 in
Weight	0.97 kg / 2.14 lbs
Input Voltage	100-240 VAC, 50-60 Hz

[/properties]

[specifications]

Operating System	SonicOS 7
Firewall Throughput	5 Gbps
Threat Prevention Throughput	2.5 Gbps
Application Throughput	3 Gbps
IPS Throughput	3 Gbps
Anti-malware Throughput	2.5 Gbps
TLS/SSL Inspection Throughput	800 Mbps
IPSec VPN Throughput	2.1 Gbps
Connections Per Second	30,000
Maximum Connections	1,500,000 SPI, 375,000 DPI, 50,000 DPI SSL
VLAN Interfaces	256
Site-to-site VPN Tunnels	250
IPSec VPN Clients	0 included, maximum 500
SSL VPN Licenses	2, maximum 250
Management	Network Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Routing Protocols	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
VoIP	Full H323-v1-5, SIP
Power Supply	60W external
Power Consumption	13.1 W (Typical) / 21.0 W (Max)
Operating Temperature	32°-105° F (0°-40° C)
Humidity	5-95% non-condensing

[/specifications]

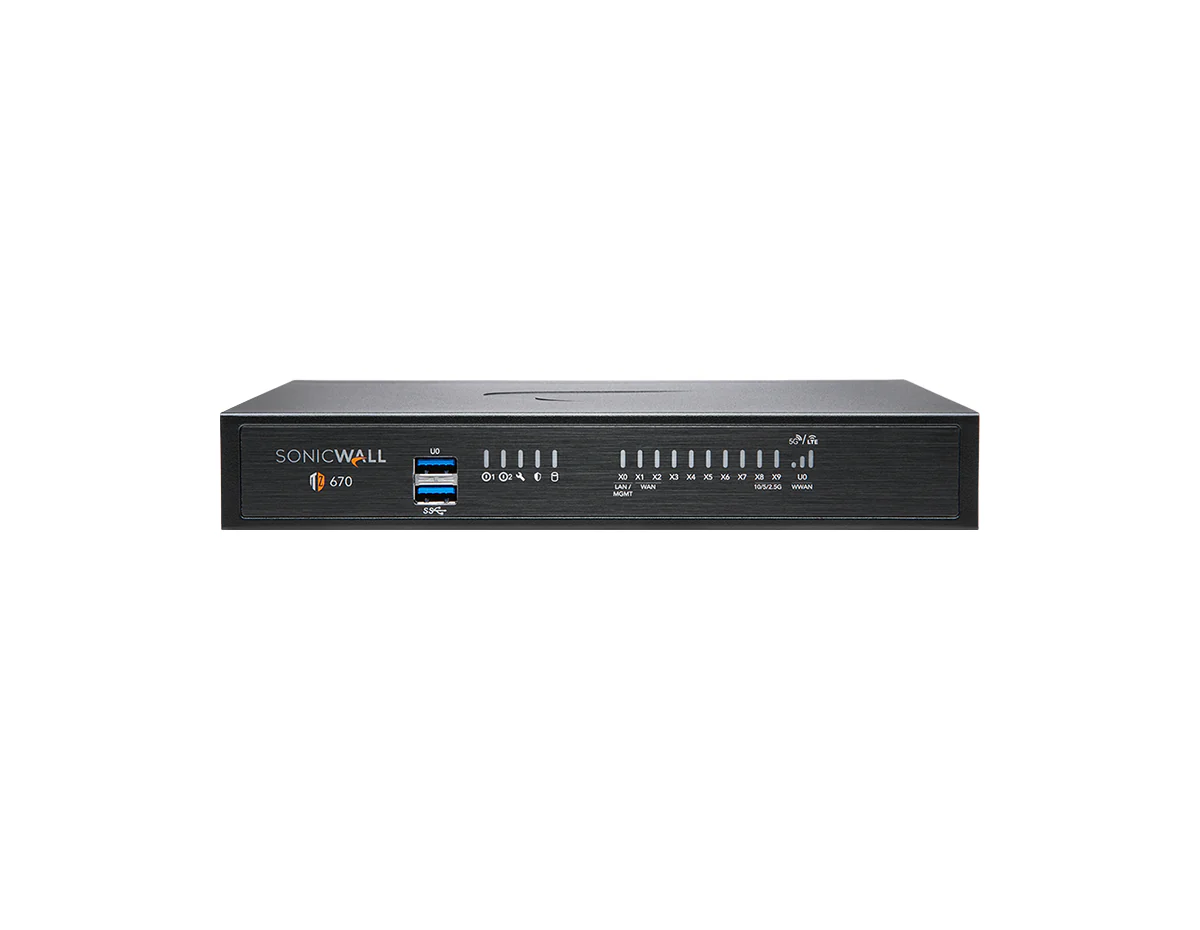

SonicWall TZ670 Security for High-Speed Networks

The SonicWall 02-SSC-2837 TZ670 is a wired desktop next-generation security appliance designed for enterprise branch networks and SMB deployments requiring high-speed Gigabit Ethernet and 10 Gigabit Ethernet connectivity. It supports advanced firewall throughput, multi-gigabit threat prevention, robust VPN connectivity, and deep segmentation via VLANs, powered by the SonicOS 7 architecture platform.

Key Benefits and Features

• 5 Gbps firewall throughput optimized for high-bandwidth business networks.
• 2.5 Gbps threat prevention and advanced anti-malware inspection capability.
• 10 Gigabit Ethernet uplinks via integrated SFP+ ports to eliminate network bottlenecks.
• Secure remote infrastructure via site-to-site IPsec VPN tunnels and scalable SSL VPN licenses.
• Compact, fanless desktop form factor ideal for office setups and branch office deployments.

Ideal Use Cases

• Distributed enterprise branch networks requiring centralized security enforcement.
• Small to medium business (SMB) firewalls needing high-speed 10GbE connectivity.
• Environments requiring extensive VLAN segmentation and deep packet inspection (DPI).
• Secure remote worker deployment utilizing scalable IPsec and SSL VPN clients.
• IT infrastructures standardizing on the SonicOS 7 ecosystem for uniform policy management.

Technical Specifications

• Brand: SonicWall
• SKU: 02-SSC-2837
• Product Description: SonicWall TZ670 Security Appliance
• Device Type: Security appliance
• Form Factor: Desktop
• Connectivity Technology: Wired
• Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet
• Firewall Throughput: 5 Gbps
• VPN Throughput: 2.1 Gbps IPsec
• OS Provided: SonicOS 7

Deploy SonicWall TZ670 for Secure Network Connectivity

Incorporate the SonicWall 02-SSC-2837 TZ670 into your IT infrastructure for a high-performance, compact security appliance featuring exceptional enterprise-grade throughput, 10GbE SFP+ uplinks, flexible VPN capabilities, and modern SonicOS 7 security management.
