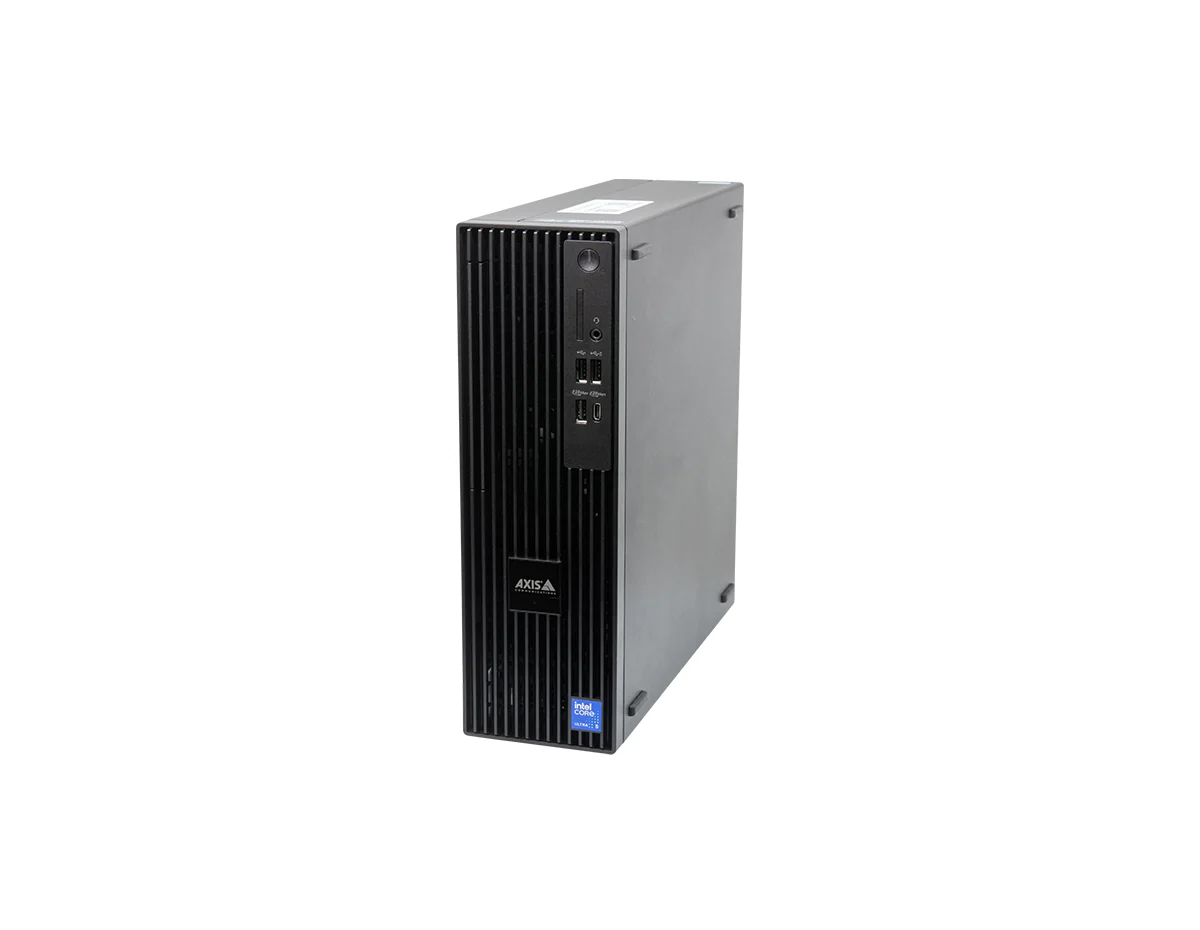

AXIS Camera Station S9302 Mk II Workstation (03427-004)
[shortdesc] Intel Core Ultra 5 235 CPU, Nvidia A400 GPU, 16GB RAM, 256GB SSD, 4x 4K monitor support, Windows 11 IoT Enterprise LTSC 2024 [/shortdesc]
[properties]
| Model | AXIS Camera Station S9302 Mk II |
| Product Type | Workstation |
| Processor | Intel Core Ultra 5 Processor 235 |
| Memory | 16 GB (2x 8 GB) |
| Storage | 256 GB SSD |
| Graphics Card | Nvidia A400 |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Display Support | Up to four 4K monitors |
| Network Interface | 1x 1 GbE RJ45 |
| Power Supply | 360 W Platinum (100–240 V AC, 5 A, 50/60 Hz) |
| Power Consumption | Typical: 110 W; Maximum: 160 W |
| Dimensions | 303 x 95 x 293 mm |
| Weight | 4.5 kg |
| Operating Temperature | 10°C to 35°C |
| Storage Temperature | -40°C to 65°C |
| Operating Humidity | 20–80% RH (non-condensing) |
| Storage Humidity | 5–95% RH (non-condensing) |
| Licenses Included | 10 AXIS Audio Manager Pro licenses |
| System Scalability | 200 simultaneous audio streams; up to 1,000 doors (access control only) |
[/properties]
[specifications]
| Front Connectors | 1x Universal audio jack; 2x USB 2.0; 1x USB 3.2 gen 2x2 USB-C; 1x USB 3.2 gen 2x1 |
| Rear Connectors | 3x DisplayPort; 4x Mini DisplayPort; 1x USB 3.2 gen 2x1 USB-C; 3x USB 3.2 gen 1x1; 2x USB 2.0; 1x 1 GbE RJ45; 1x Power connector |
| Video Streaming | 1x 4K @30 fps; 9 split @1080p; up to 36 split @360p @15 fps |
| Playback | Matches recording resolution; high-speed playback may affect performance |
| Cybersecurity Features | FIPS 140-2 level 2 certified TPM 2.0; Secure Boot; Encrypted OS and recording drive support |
| Compliance | TAA compliant |
| EMC Standards | EN 55032 Class B; EN 55035; FCC Part 15 Subpart B Class B; VCCI Class B; RCM AS/NZS CISPR 32 Class B |
| Safety Standards | IEC/EN 62368-1; CAN/CSA C22.2 No. 62368-1; KC-Mark; NOM-019 |
| Environmental Compliance | RoHS; REACH; EN 50564 |
| Operating System Recovery | Built-in operating system recovery included |
[/specifications]
[accesories]
| Included | 4x Mini DisplayPort to DisplayPort adapters; Wall plug power cord |
| Optional | Axis joysticks and control boards |
[/accesories]
High-Performance Surveillance Workstation for Scalable Video Systems
The AXIS Camera Station S9302 Mk II Workstation (03427-004) is a powerful and flexible solution designed for modern video surveillance environments. Built and validated by Axis Communications, it operates seamlessly as both a client or server, delivering high-performance video management with support for demanding multi-monitor setups. Its compact form factor makes it ideal for control rooms and installations where space efficiency is critical.
Key Benefits & Features
- Dual Role Flexibility: Functions as both a client workstation or server when paired with AXIS S30 or S40 Series, enabling scalable deployment options.
- Multi-Monitor 4K Support: Supports up to four 4K monitors, providing enhanced situational awareness and efficient video monitoring.
- Preloaded VMS Software: Includes AXIS Camera Station Pro client software for streamlined setup and optimized video management workflows.
- Powerful Processing Performance: Equipped with Intel Core Ultra 5 processor 235 and Nvidia A400 GPU for smooth video decoding and multitasking.
- Fast Installation Tools: Integrated AXIS Recorder Toolbox ensures quick and easy installation, reducing deployment time significantly.
Ideal Use Cases
- Enterprise video surveillance control rooms
- Retail and commercial security monitoring stations
- Access control and audio management systems
- Transportation hubs and smart city surveillance
- Small to mid-scale centralized monitoring setups
Technical Specifications
- Processor: Intel Core Ultra 5 Processor 235
- Memory: 16 GB RAM (2x 8 GB)
- Storage: 256 GB SSD (Operating system drive)
- Graphics: Nvidia A400 GPU
- Operating System: Windows 11 IoT Enterprise LTSC 2024
- Network: 1x 1 GbE RJ45
- Display Outputs: Supports up to four 4K monitors via DisplayPort and Mini DisplayPort
- Video Capability: 4K live view at 30 fps, multi-split streaming support up to 36 streams
- Power Supply: 360W Platinum efficiency
- Form Factor: Small form factor workstation
Upgrade Your Surveillance Performance Today
Maximize your video management efficiency with this powerful Axis workstation. Order today and deploy with confidence.
