Cisco Catalyst C9200-24P-E 24-Port Full PoE+ Switch with Modular Uplinks, Network Essentials
Cisco Catalyst C9200-24P-E 24-Port Full PoE+ Switch with Modular Uplinks, Network Essentials
- Switch
- L3
- Smart
- 24 x 10/100/1000 (PoE+)
- Rack-mountable
- PoE+
[properties]
| Properties | C9200-24P-E |
| Description | Catalyst 9200 24-port PoE+ Switch. Network Essentials |
| Product Family | Catalyst 9200 |
| Product Type | Ethernet Switch |
| Number of Ports | 24 |
| Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports full PoE+ |
| Uplink configuration | Modular uplink options |
| Cisco IOS Software | Network Essentials |
| Default primary AC power supply |
PWR-C6-600WAC |
| Available PoE power with additional secondary power supply |
740W |
| Fans | FRU redundant |
| Chassis + FEP + ‚ Fan Dimensions (HxWxD) Inches |
1.73x17.5x15.4 |
[/properties]
[specifications]
| Specifications | C9200-24P-E |
| Console Ports | RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| Switching capacity | 128 Gbps |
| Forwarding rate‚ | 95.23 Mbpps |
| MAC addresses | 32000 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5°C to +45°C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5°C to +40°C |
| Safety | IEC 60950-1 UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950.1 Class I Equipment |
| Electromagnetic compatibility certifications |
47 CFR Part 15 CISPR 32 Class A CNS 13438 EN 300 386* EN 55032 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A KN 32 TCVN 7189 Class A V-3 Class A CISPR 35 EN 300 386* EN 55035 KN 35 TCVN 7317 |
| EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A VCCI Class A CISPR 35 EN 55035, EN300 386* EN 61000-3-2, EN 61000-3-3 |
| Safety compliance |
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
[/specifications]
[accesories]
| Stacking Support | StackWise-160 |
| Stacking bandwidth support | 160 Gbps |
| Stacking hardware‚ | C9200-STACK-KIT |
| Number of members |
8 |
| Supported stack members | Other C9200 models with the same license level |
| Stacking accessories | |
| C9200-STACK-KIT | Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM | Data stack 50 cm cable (default cable with Stack Kit) |
| STACK-T4-1M | Data stack 1 m cable |
| STACK T4-3M | Data stack 3 m cable |
[/accesories]
Technical Details

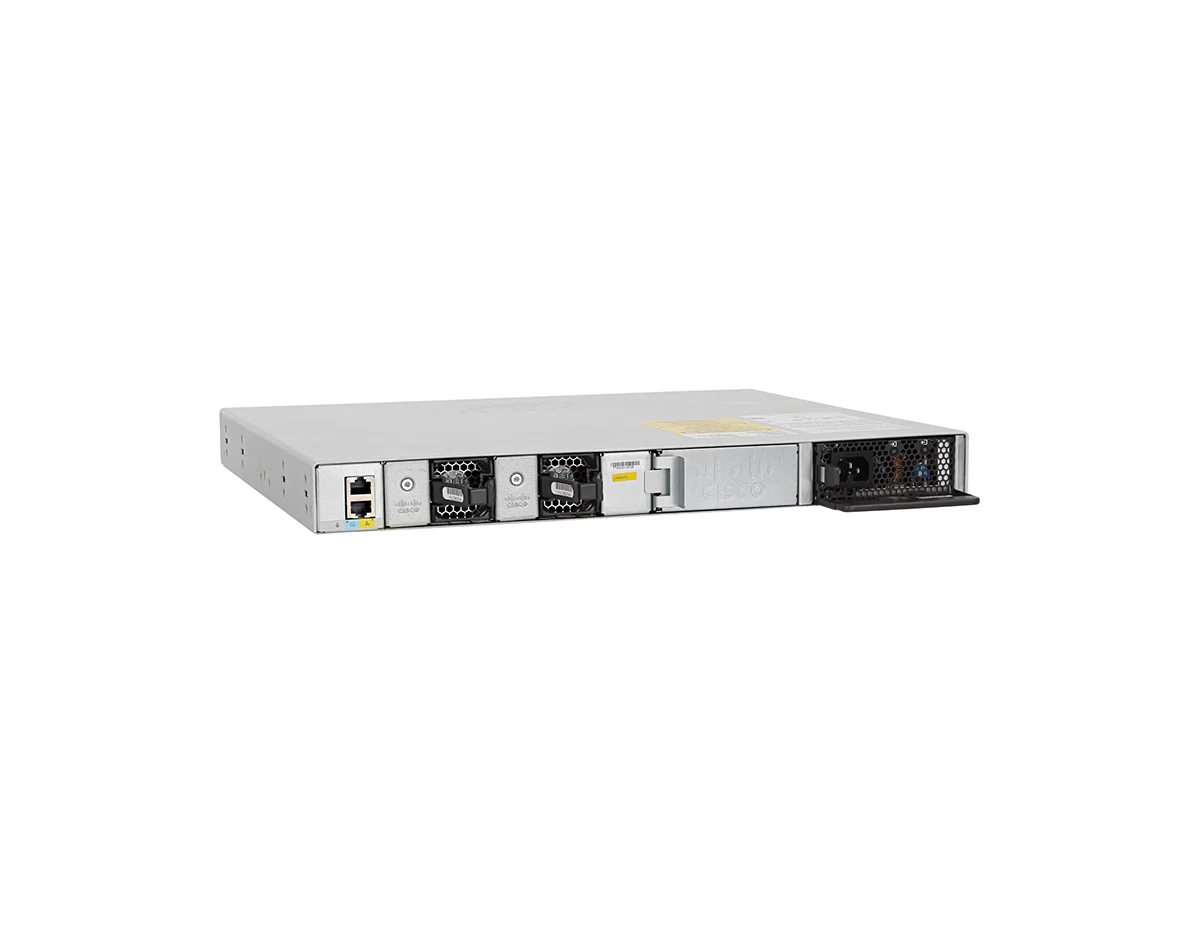

The Cisco Catalyst C9200-24P-E is a Layer 3 managed 1U rackmount switch with 24 Gigabit (10/100/1000) PoE+ ports and modular uplinks, running Cisco IOS XE with the Network Essentials license. Uplinks are added through a field-replaceable network module that supports 1G, 10G, 25G, or 40G options. It ships with a 370 W PoE+ budget on its single power supply, expandable to 740 W with a second power supply. Its switching capacity is 128 Gbps and its forwarding rate is 95.23 Mpps. It stacks with other Catalyst 9200 switches over Cisco StackWise-160 at 160 Gbps.
Overview
The Cisco Catalyst C9200-24P-E is a modular-uplink, 24-port Gigabit PoE+ access switch in the Cisco Catalyst 9200 series.
The modular Catalyst 9200 models use field-replaceable network-module uplinks, field-replaceable redundant power supplies and fans, and Cisco StackWise-160 stacking, and run Cisco IOS XE on the Cisco UADP 2.0 Mini ASIC. With the Network Essentials license, the C9200-24P-E supports Layer 2 switching and routed access, including static routing, RIP, EIGRP stub, OSPF up to 1,000 routes, Policy-Based Routing, PIM stub multicast, VRRP, 802.1X, and MACsec-128 encryption.
Cisco positions the Catalyst 9200 as the successor to the end-of-sale Catalyst 2960-X and 2960-XR access switches.
Best For
The Cisco C9200-24P-E suits campus and branch access-layer deployments that need PoE+ for wireless access points, IP phones, and IP cameras at the base license tier. Its modular uplinks let you choose 1G, 10G, 25G, or 40G to match the aggregation or core layer, and its 370 W PoE+ budget (740 W with a second power supply) is suitable for mixed PoE deployments; actual device counts depend on each powered device's power draw. The Network Essentials license covers Layer 2 switching and routed access, which is sufficient where advanced routing and segmentation are not required.
Not suitable if:
- You need more than 24 access ports.
- You need advanced Layer 3 routing (full OSPF/EIGRP, IS-IS) or segmentation (VRF, SGT).
- You need multigigabit (mGig) access ports above 1 Gbps for Wi-Fi 6E/7 access points.
- You do not need PoE on the access ports.
Part Number Decode
- C9200 indicates the modular-uplink platform within the Cisco Catalyst 9200 Series.
- 24P indicates 24 Gigabit (10/100/1000) PoE+ access ports.
- -E indicates the perpetual Network Essentials license.
- The SKU has no uplink letter because the uplinks are supplied by a separate, field-replaceable network module (for example, C9200-NM-4X for four 1/10G uplinks).
Original: $1,855.00
-65%$1,855.00
$649.25Product Information
