[shortdesc]48 x 1GbE RJ45, 4 x 1GbE SFP, 740W PoE budget, 104Gbps switching, 1U rack mount[/shortdesc]

[properties]

Brand	Cisco Meraki
Model	MS130-48P
SKU	MS130-48P-HW
Product Type	Layer 2 access switch
Series	MS130
Form Factor	Integrated 1U Rack Mount
Port Count	48 x 1 GbE RJ45
Interface	4 x 1 GbE SFP
PoE Support	802.3bt
Power	740W PoE switch budget
Input Voltage	100-240V~, 12-6A, 50-60Hz
Dimensions	1.73 x 17.32 x 13.4in (4.4 x 44 x 34cm)
Weight	12.13 lb (5.5 kg)
Operating Temperature	32°F - 113°F, 0°C - 45°C

[/properties]

[specifications]

Switching Capacity	104 Gbps
Dedicated Mgmt Interface	1
PoE Port Budget	30W
Power Load	49W/803W idle/max
Power Supply	Fixed Internal
Fan Operation	Fixed Internal
Storage and Transportation Temperature	-4°F - 158°F, -20°C - 70°C
Humidity	5% to 95%
Management	Managed via Cisco Meraki Dashboard
Supported Features	SNMP/Syslog Integration, IPv4/6 ACL support, 802.1Q VLAN tagging, DHCP Snooping, 802.1X Authentication
MTBF Rating	309,196 hours at 25°C

[/specifications]

[accessories]

Included	MS130 switch; rack mount screws
Optional Cable	MA-PWR-CORD-US, MA-PWR-CORD-EU, MA-PWR-CORD-UK, MA-PWR-CORD-CN, MA-PWR-CORD-IN, MA-PWR-CORD-BR, MA-PWR-CORD-TW, MA-PWR-CORD-AU, MA-PWR-CORD-AR, MA-PWR-CORD-JP
Compatible Accessories	MA-SFP-1GB-SX, MA-SFP-1GB-LX10, MA-SFP-1GB-TX

[/accessories]

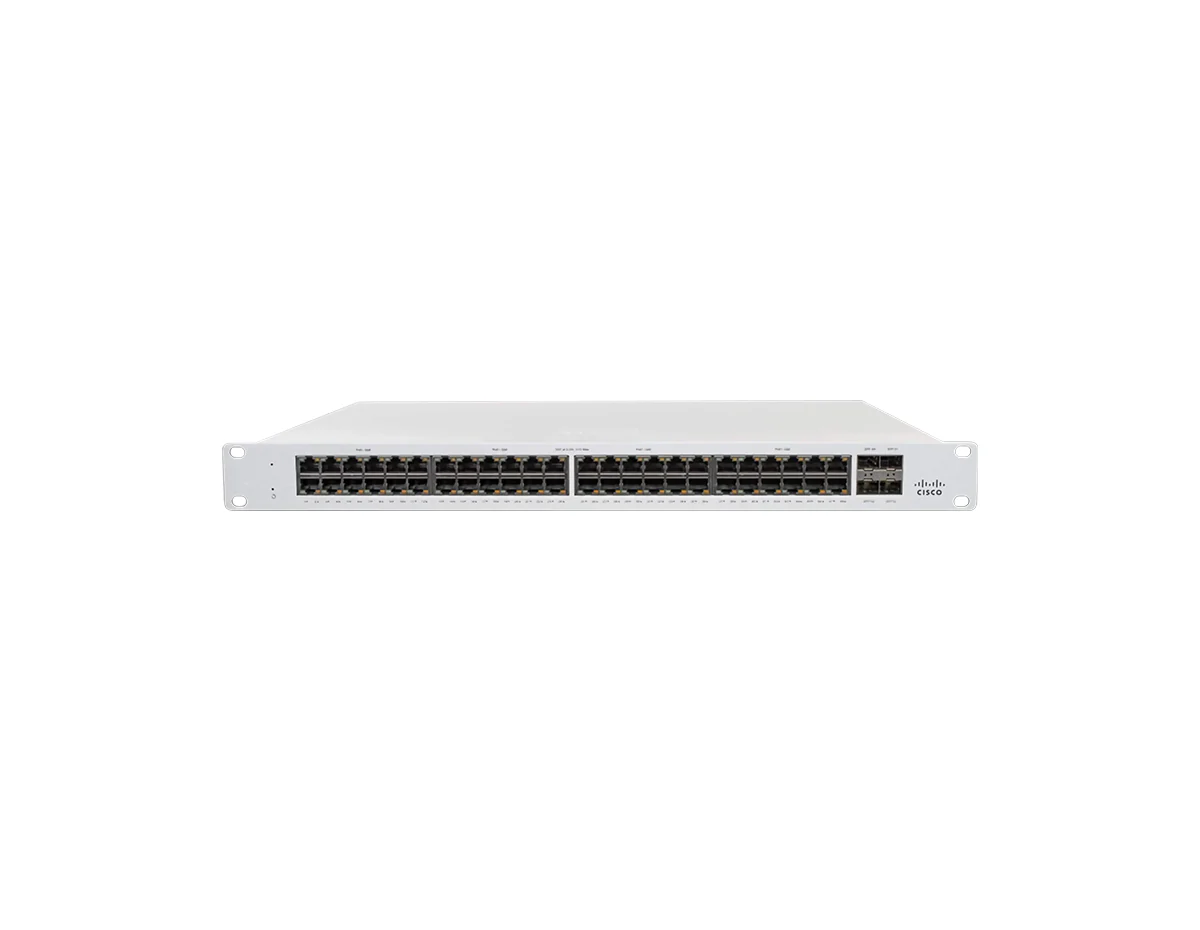

Cloud-Managed PoE Switching for Branch and Campus Networks

The Cisco Meraki MS130-48P-HW is a 48-port Layer 2 access switch designed for branch and campus deployments that need centralized cloud management, PoE connectivity, and reliable rack-mounted switching. It provides 48 Gigabit RJ45 access ports, 4 Gigabit SFP uplinks, and a 740W PoE switch budget for powering connected network devices.

Key Benefits and Features

• Cloud-managed through the Cisco Meraki Dashboard for centralized switch administration.
• 48 x 10/100/1000 Mbps RJ45 ports support high-density wired access deployments.
• 802.3bt PoE support with up to 30W per port and a 740W total switch budget.
• Integrated Layer 2 features include VLAN tagging, DHCP snooping, IPv4/IPv6 ACL support, and 802.1X authentication.
• Built-in tools support remote packet capture, SNMP/Syslog integration, and automatic firmware upgrades.

Ideal Use Cases

• Branch office access switching for business users and network endpoints.
• Campus edge deployments requiring cloud-managed Layer 2 connectivity.
• PoE network designs supporting connected devices across multiple access ports.
• IT teams standardizing switch monitoring and configuration through Meraki Dashboard.

Technical Specifications

• Brand: Cisco Meraki
• SKU: MS130-48P-HW
• Switching Type: Layer 2 access switch
• RJ45 Ports: 48 x 10/100/1000 Mbps
• SFP Ports: 4 x 1GbE SFP
• Dedicated Management Interface: 1
• PoE Type: 802.3bt
• PoE Budget: 740W switch budget, 30W per port
• Switching Capacity: 104 Gbps
• Mounting: Integrated 1U rack mount

Deploy Cisco Meraki MS130-48P-HW with Confidence

Choose the MS130-48P-HW for cloud-managed Gigabit access switching with high port density, PoE power, and practical Layer 2 controls for modern branch and campus networks.
